Setting up Xenica IP Manager

We have a dedicated IP manager to manage all IP related tasks like

Assigning IPs to the VM
Maintaining IP records assigned to the user
Displaying IP availability status
Ability to add/remove multiple IPs
Filter IPs based on user names,NOC and IP availability

and so many features.

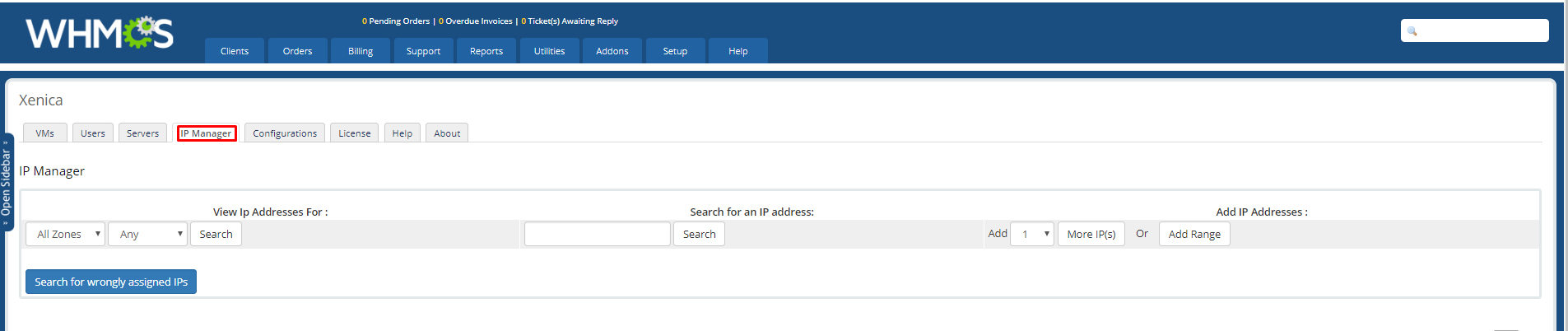

You can access the IP manager by WHMCS Addons → Xenica and Select IP Manager

We have a Concept of NOC/Datacenter in our IP manager, in which IPs are Allotted based on NOC

Were you can have multiple servers on a same NOC/DC.

i.e (If you need some servers to use completely different set of IPs, you can simply change its NOC/DC to Some other name

By Default all Servers will be added to (Default) NOC

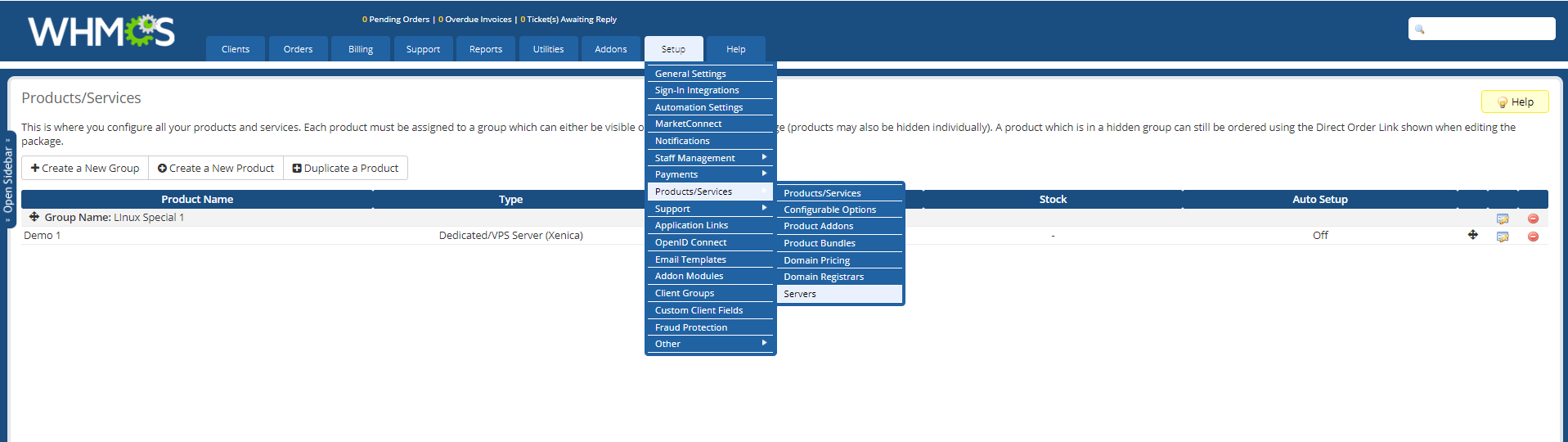

You Can edit the NOC of the Server by accessing WHMCS Setup → Products/Services → Servers

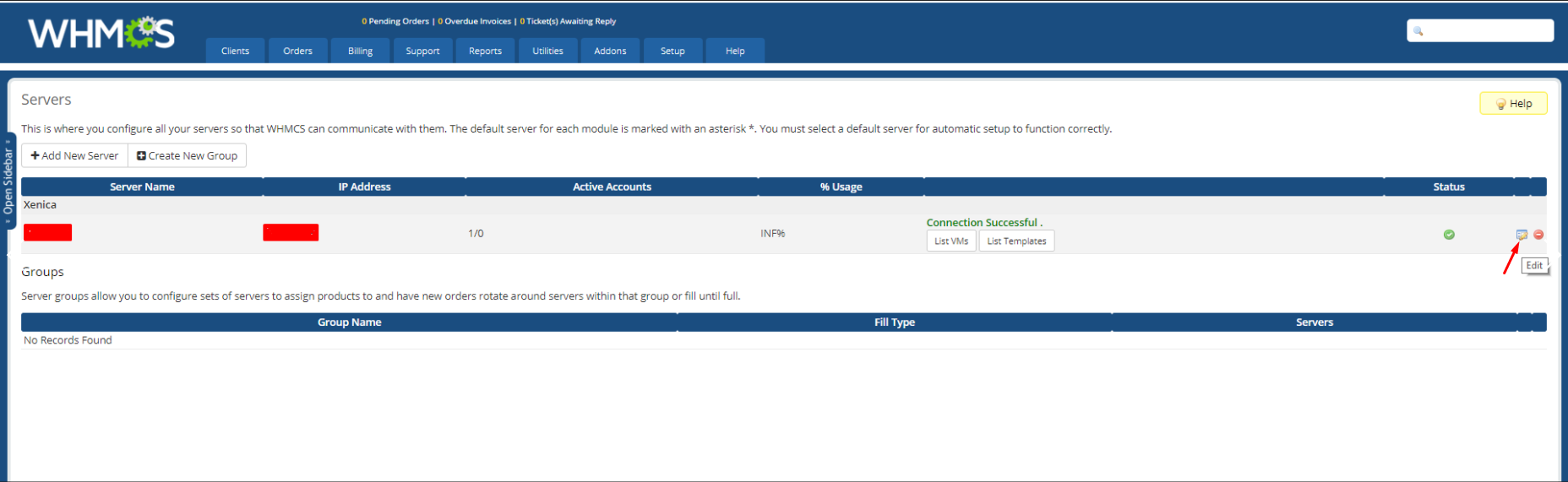

Click Edit on the left Corner Server Which you want to change the NOC

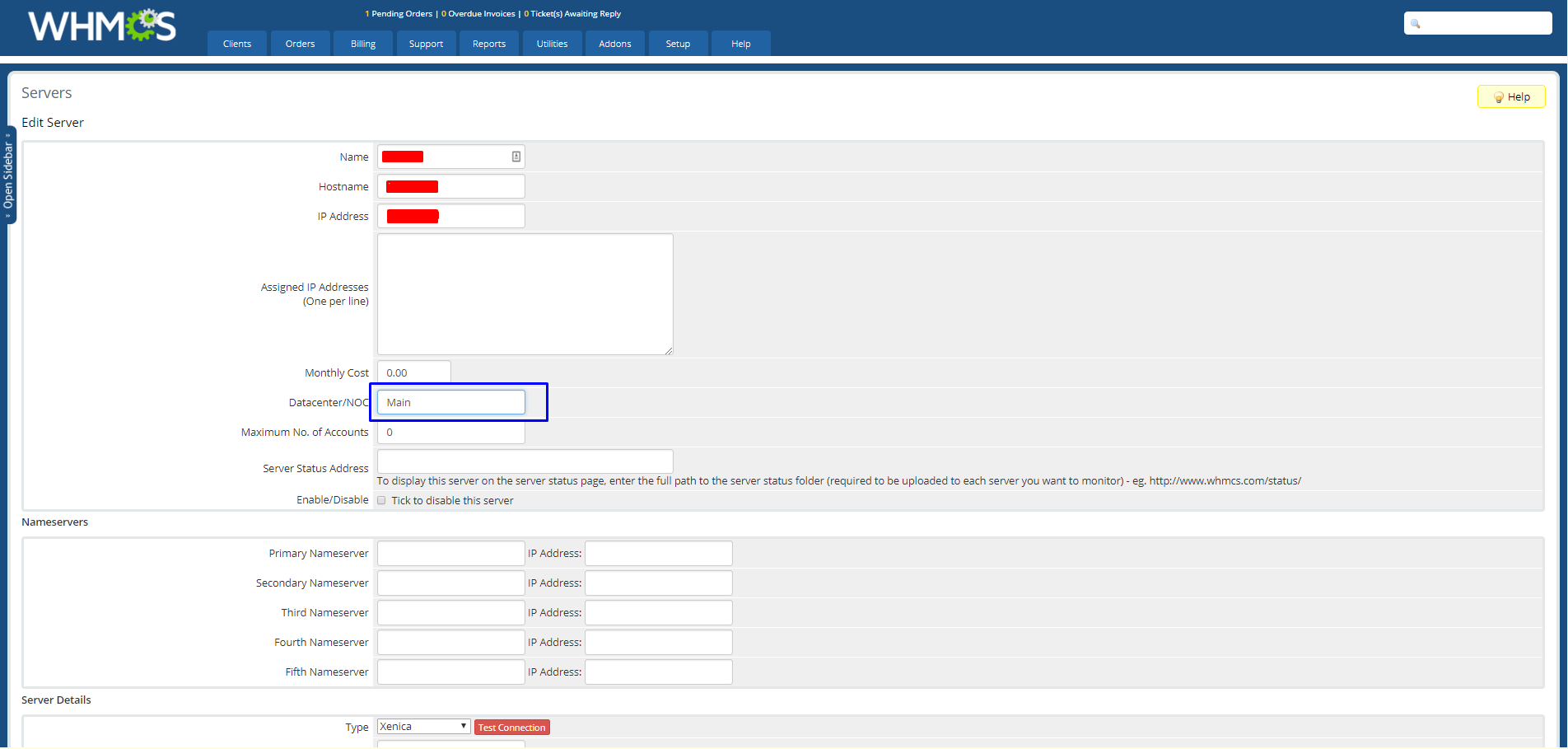

Add the NOC/Data center name and save the Changes

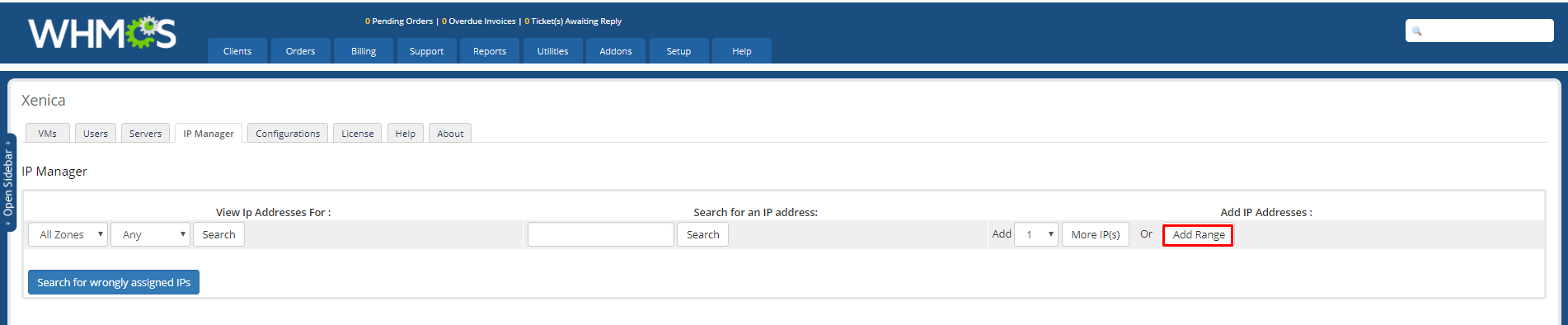

You can add your 1 or more IP(s) to the Xenica IP manager If you want to add a Range of IPs Select WHMCS Addons → Xenica → IP manager → Click on the Add Range button

Unordered List Item. Select the Datacenter/NOC where you want to use these IPs or you can leave it as Default

(If the Default option is selected all the IPs are asigned to the Default datacenter)

Unordered List ItemEnter the First IP address and last IP address,Last IP address, Submask, Broadcast and Gateway, then click Add IP Range

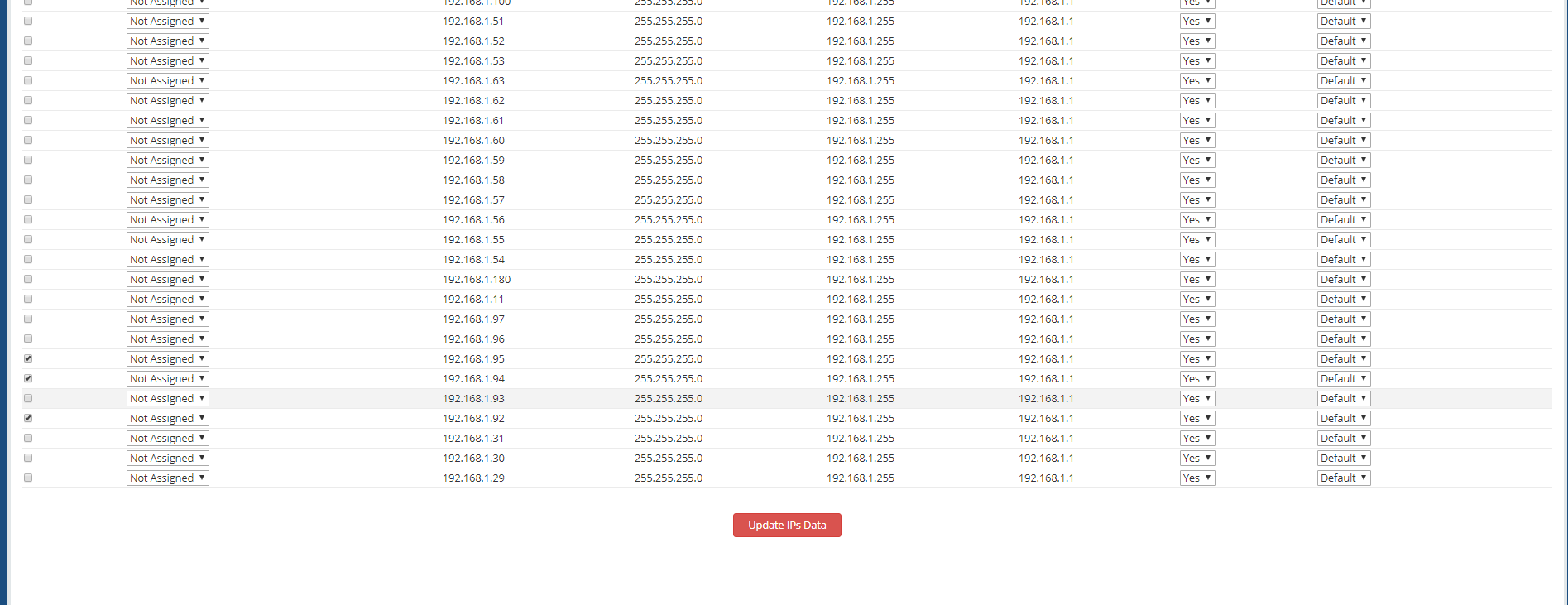

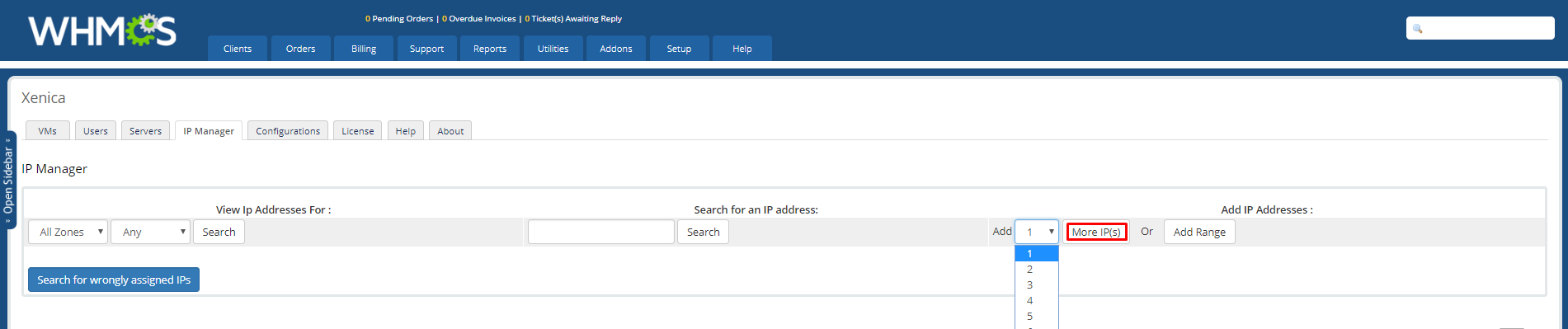

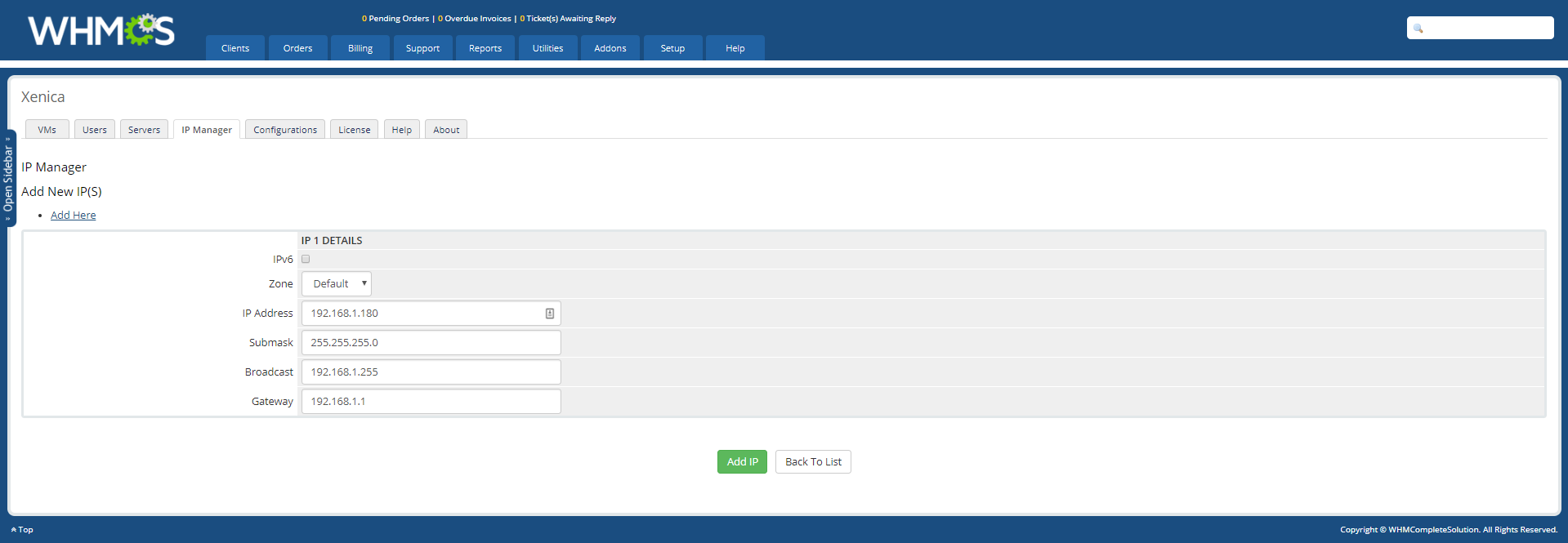

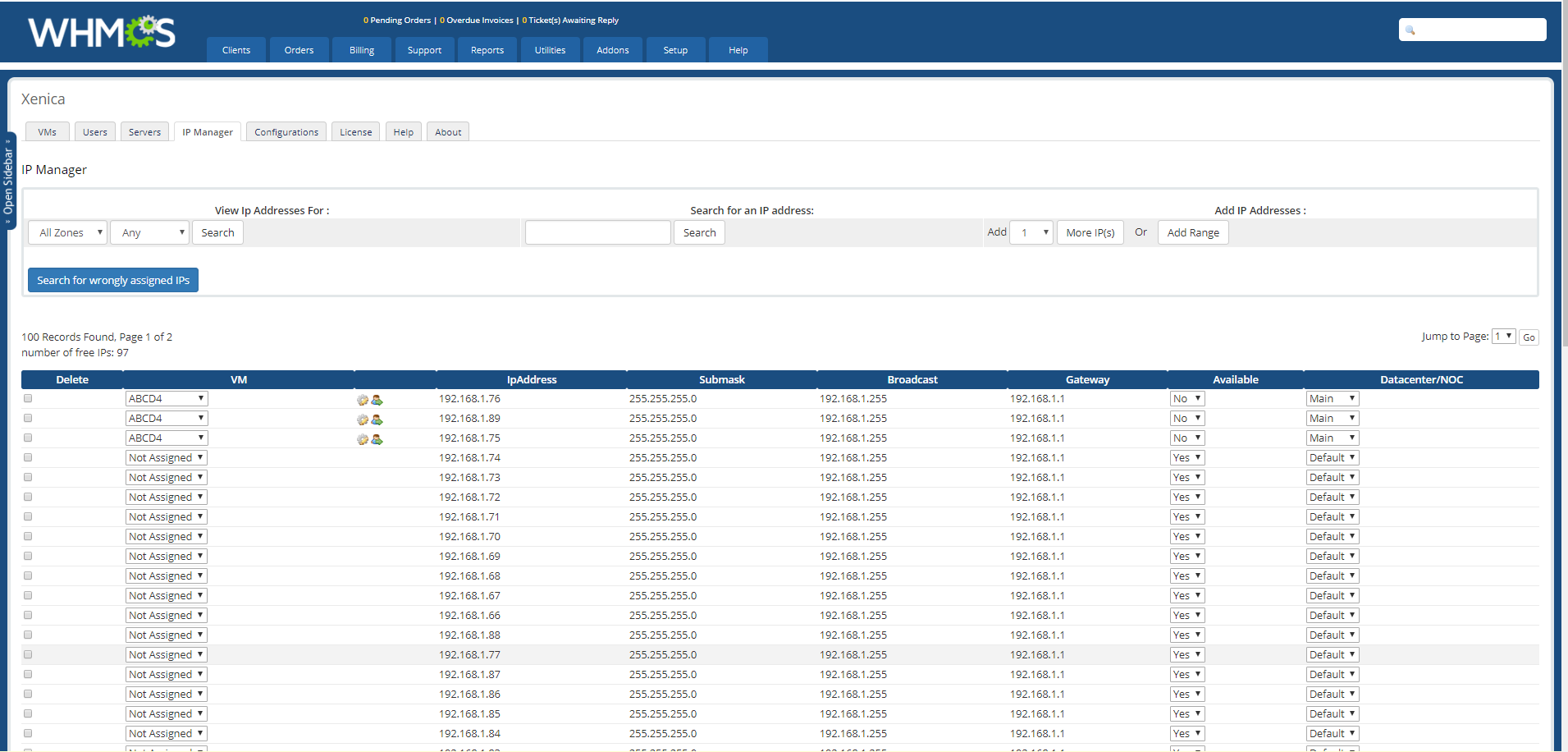

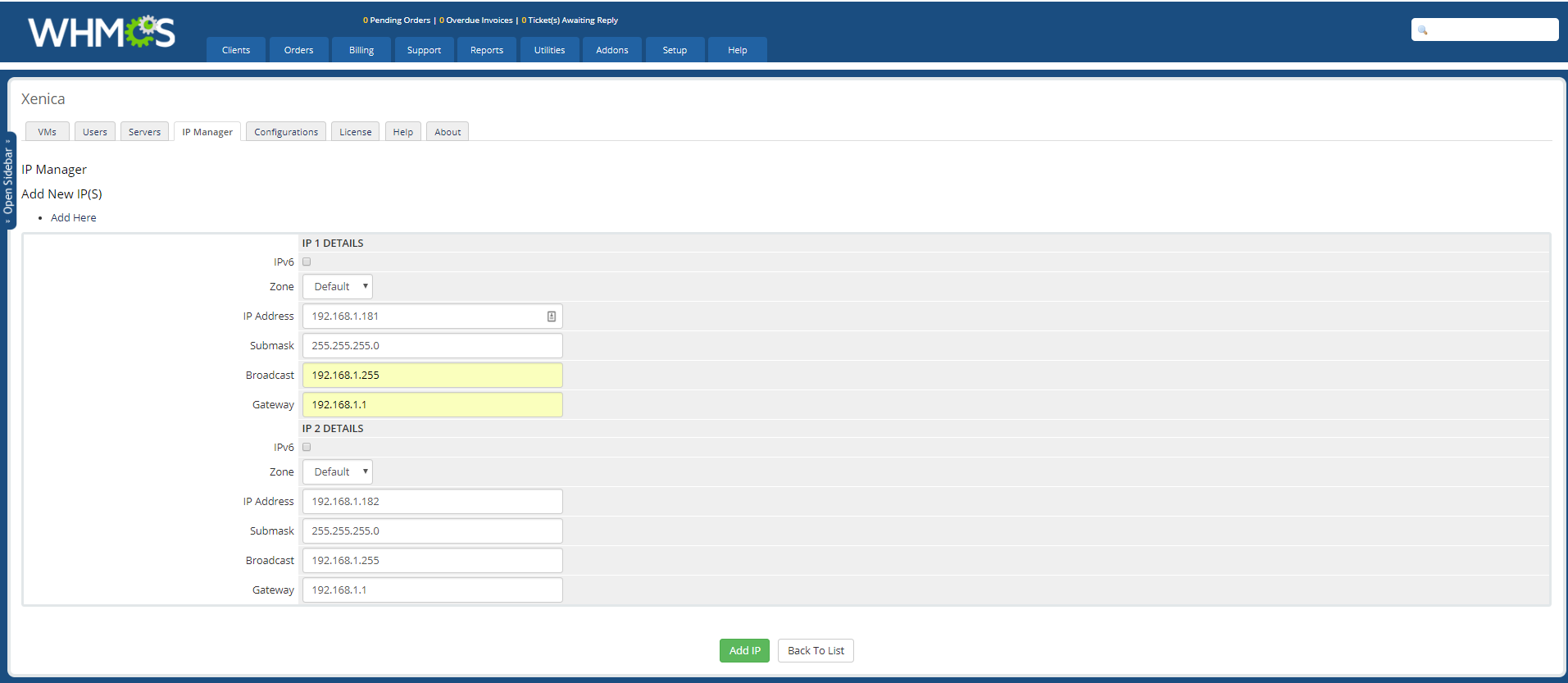

If you want to add 1 or more IPs with different range Select the number of IPs you want to add and Click on More IP(s) From there you can add 1 or more IPs with different range Adding Single IP —- Adding multiple IPs —- After you added the IPs, you can see the IPs as shown below. Form here you can Verify * VM name which the IP(s) assigned to * Availability of the IP(s) * Data Center of the IP(S) If you want to delete 1 or more IP(s), Select the Check Box on the right corner and Click Update IPs Data**
